Portable x-ray machine 100ma mobile high frequency digital fluoroscopy

Name: Portable xray machine 100ma mobile high frequency digital fluoroscopy
Brand: Logermay
Price: 2 USD

China Portable x-ray machine 100ma mobile high frequency digital fluoroscopy wholesale

Place of Origin : Jiangsu, China

Brand Name : Logermay

Model Number : LGM-1019

Power Source : Electric

Warranty : 2 years

After-sale Service : Online technical support

Material : metal

Shelf Life : 2 years

Quality Certification : ce

Instrument classification : Class II

Safety standard : None

Properties : Medical-Ray Protective Products

Power Output : 8KW

voltage : 180V ~ 250V

X-ray Tube: fixed anode focus : 1.5 (X-ray tube for high frequency)

X-ray tube focus : 4.3 * 4.3 mm

Tube Current : 16mA, 32mA, 63mA, 100mA

Packaging Details : WOODEN CASE

Port : shanghai port

Supply Ability : 1000 Set/Sets per Month

Price : $2,500.00 - $2,850.00/Sets

Contact Now

Product Description

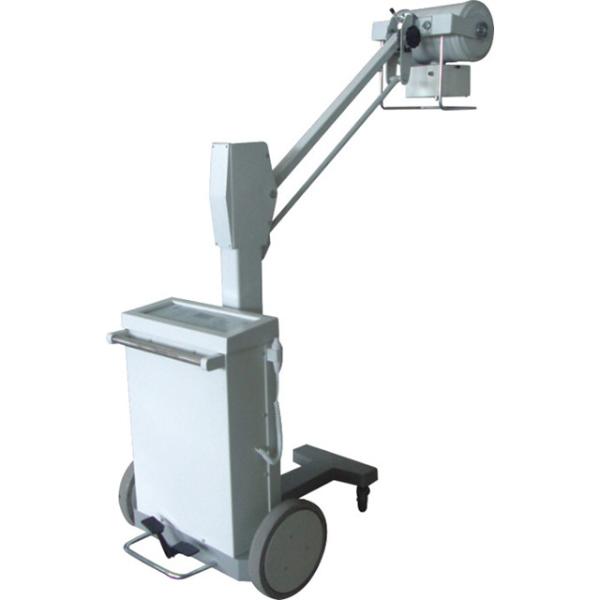

Portable x-ray machine 100ma mobile high frequency digital fluoroscopy

x-ray takes X-ray photography of the head, extremities, chest cavity and other parts of human in the ward, operation room oroutdoors.

Main features:

1.Two devices of standard & optional configuration, analog & digital display separately.
2.Human-computer interaction interface friendly; control unit is simple and easy to operate.
3.Moves flexible, safe and stable, independent and efficient, convenient maintenance.
4.Single focus, full-wave rectifier, combined x-ray generator.
5.Optional configuration digital machine with CLD back light display, microprocessor of control circuit, automatic testing and tracking system of supply voltage.
6.Premier high voltage with SCR zero passage control circuit, tube assembly temperature protection, load chains exposure time control, auto alarm, preheat filament, over-voltage & under voltage protection.
7.Wireless remote control exposure, radiation exposure acousto-optic indication and overload
indication
8. Adopt cantilever framework, third gear safe lock protection device, fixed or rotary column for
choice

Specification

Power Supply	Single phase AC three-wire system, voltage 180V ~ 250V; Frequency 50Hz; source resistance ≤ 0.22Ω; Capacity 8kW; max current 37A ( instant )
Radiography	Voltage: 50-90KV
	Current: 16mA, 32mA, 63mA, 100mA
	Time: 0.08-6.3s
X-ray tube focus	4.3 * 4.3 mm
Max. Photography scope	40cm * 40 cm ( when focus-skin distance is 1m )
Max. distance from focus of x-ray tube assembly to ground ( window downward ): rotary column ≥ 177.5cm; Fixed column ≥ 172.5cm Min. distance from focus of x-ray tube assembly to ground ( window downward ): rotary column ≤ 53.5cm; Fixed column ≤ 48cm
Width of tube assembly rotate around the axis of cantilever > 90°; Width of tube assembly rotate forth around the axis of supporting stand: > 90°
Dimensions of the complete unit moves ( L * W * H ): a) 136cm * 69cm * 125cm ( for fixed column ) b) 136cm * 69cm * 134cm ( for rotary column )
Control distance of remote switch exposure: about 7m
X ray tube	Focus:0.6/1.5mm;Anode heating capacity:76kHU
Digital detector	Limited resolution:3.6lp/mm; A/D conversion:14bit
Anatomy program	24 kinds of memory choices
Size	290×260×230 mm
Weight	18.8kg
Accessories	Standard: the switch, cables.7
